Description
Purchasing Tips:
(1) Free shipping on all orders.Bike Chargers are shipped from United States or China warehouse, delivery time is 5-15 working days.
(2) The bike charger may differ from the description on the page due to different production batches and models. Please purchase according to the model on the page, and the actual product received shall prevail.
(3) Please check the battery label information before purchasing, whether it is a 48V battery or a 36V battery. Don't buy the wrong one, otherwise you will burn out the circuit.

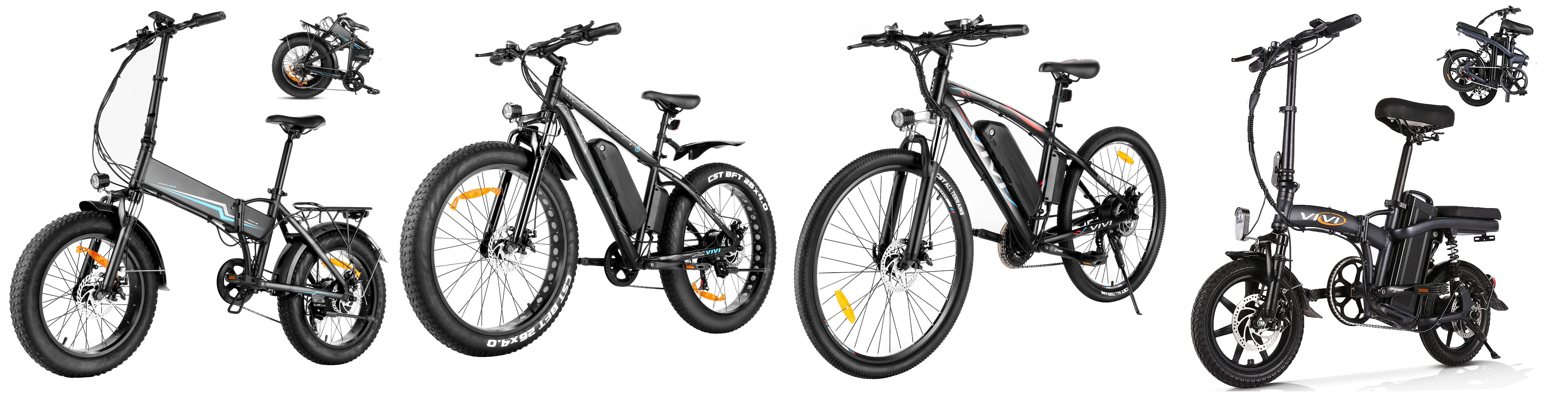

Applicable Bike Model
| STYLE | BIKE MODEL | BIKE STYLE | BIKES |
| Charger A | C26 | 500W 48V |
|
| Charger A | H6 | 500W 48V |  |
| Charger A | H6 Plus | 500W 48V |  |
| Charger A | H7 | 500W 48V |  |
| Charger A | H8 | 500W 48V |  |
| Charger A | M026SH | 500W 48V |  |
| Charger A | 26LGB | 500W 48V |  |
| Charger A | M026TGB | 500W 48V |  |
| Charger A | MT26G | 500W 48V |  |
| Charger A | F26F | 500W 48V |  |
| Charger A | F20F | 500W 48V |  |
| Charger A | FM20 | 500W 48V |  |
| Charger A | MT20 | 500W 48V |  |
Product Details
|
Charger type |
Lithium battery charger |
|||
|
Charger Material |
PC ABS |
|||
|
Color |
Black |
|||
|
Model |
LBC015480301 etc. |
|||
|
Plug Type |
US |
|||
|
Specification |
54.6V 3A DC |
|||
|
Input Voltage |
100-240V AC |
|||
|
Input Current |
2.5A(max) |
|||
|
Input Frequency |
50-60Hz |
|||
|
Port |
DC |
|||
|
Output Voltage |
54.6V |
|||
|
Output Current |
3A |
|||
|
Application |
48V E-bike lithium battery |
|||
|
Supports Solar Energy |
No |
|||
|
Certification |
CE、UL、GS、CB、ROHS |
|||
|
Charging Time |
4 Hours |
|||
|
DC Cable |
DC 5.5*2.1mm |
|||
|
Weight |
0.5kg/1.1lb |
|||
|
Product Dimensions |
8.6"D x 4.3"W x 5.5"H |
|||
|
Warranty |
1 Year |
|||
|
Quantity |
1Pc |
|||
Main Feature
-
【High Quality】3A smart fast charging charger with high quality thick and pure wire for durability. Suitable for 48V electric bicycle electric scooter, with stronger compatibility and better performance.It takes 3-4 hours to fully charge with a 3A fast charger, which is 1.5 times faster than a 2A charger.
-
【Power Parameters】Battery input: AC 100-240V 50/60Hz, 2.5A; Output: DC 54.6V 3A; Charger plug size: 5.5mm*2.1mm*12mm. Please check carefully before ordering to make sure your battery charging port is compatible with the list display.
-
【Intelligent Charging】Internal intelligent IC chip recognition, quadruple protection design: 1,Short circuit protection; 2,Battery polarity error protection; 3, Over current protection; 4,Over voltage protection. When it stops working, it will automatically power off to protect the internal battery from over-discharge and damage, thus prolonging the battery's life.
-
【Indicator】Red light means it is charging, green light means charging is full or disconnected. If charging is finished, please unplug the charger. If the charger is damaged during transportation or use, please do not disassemble the charger without permission, you should stop using it immediately and contact us.
-
【Sincerely Service】Please feel free to buy, if you have any questions about this product, please contact us, we will provide you with a satisfactory solution at the first time.
Packing List
- 1 x Original 54.6V 3A Charger
Note: Due to the difference between different monitors, the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures. Thank you.
Safety Tips
- Use only the manufacturer-supplied charger.
- Before purchase, please check the charger plug is suitable.
- If charging is finished, unplug the charger.
- If the charger is damaged during shipping or use, do not use it.
- Please make sure the charger is in good condition and check if the battery to be charged is in good condition.
- Never leave a battery charging unattended. Day or night.
- Don’t overcharge batteries. It takes 6-8 hours to charge the battery for the first time, and it will be fully charged in about 5 hours.
- Don’t charge batteries near combustible or explosive materials.
- Don’t charge a battery in a confined space like a motorhome, RV, boat, automobile, van or shed.
- Never charge a battery that has been dropped, damaged or dinged.
- Don’t modify your e-bike’s drive system if you’re not an expert.
- Don't charge a battery in confined hot spaces (Although you can get battery charging boxes which are obviously confined these should still be stored somewhere cool).
- Install a smoke detector over your charging area.
- Use water and an A B C fire extinguisher (the most common type) to put out a lithium-ion battery fire.
